Scope of Project:
Design & Manufacture of Genset Enclosures including:

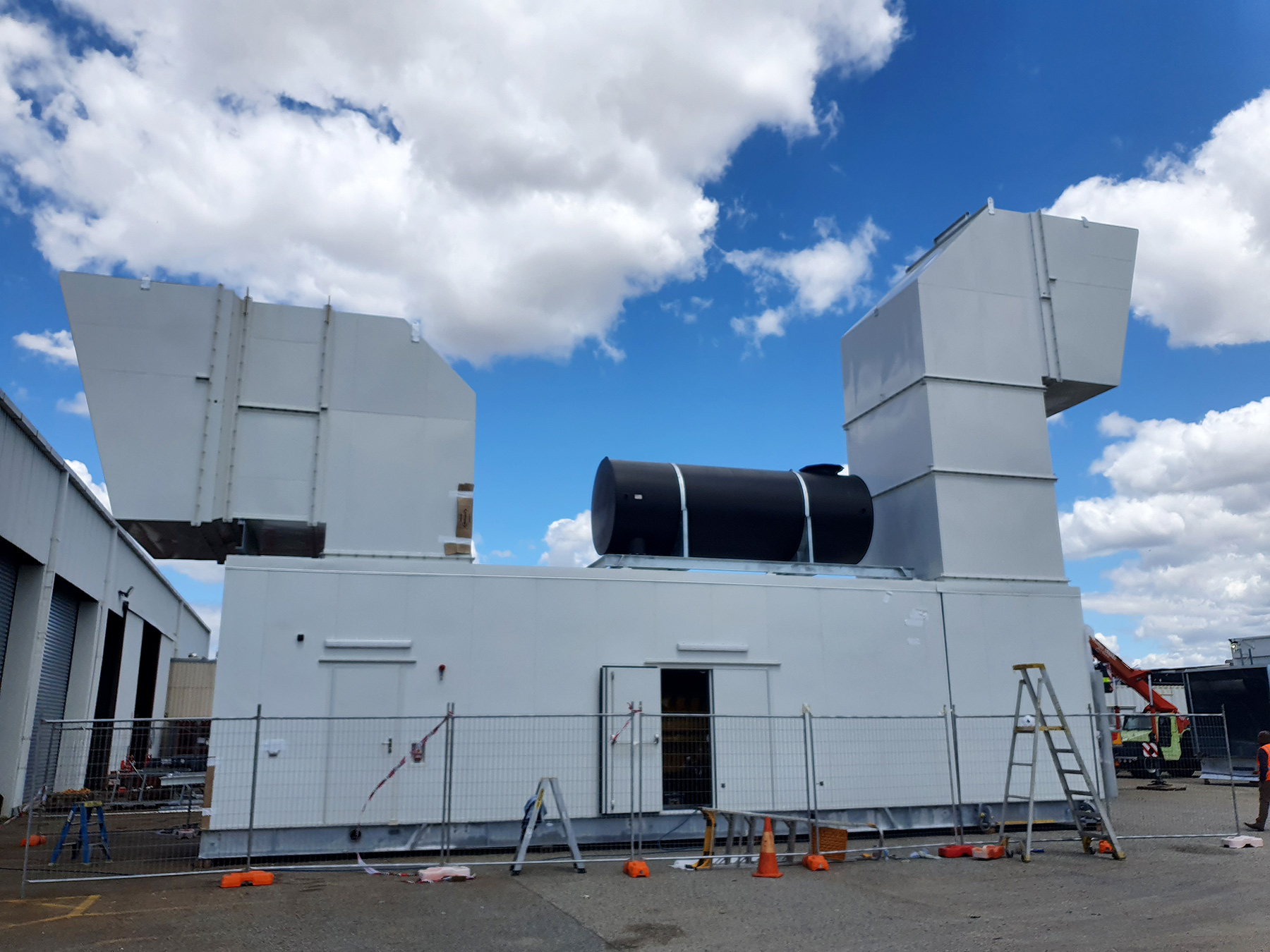

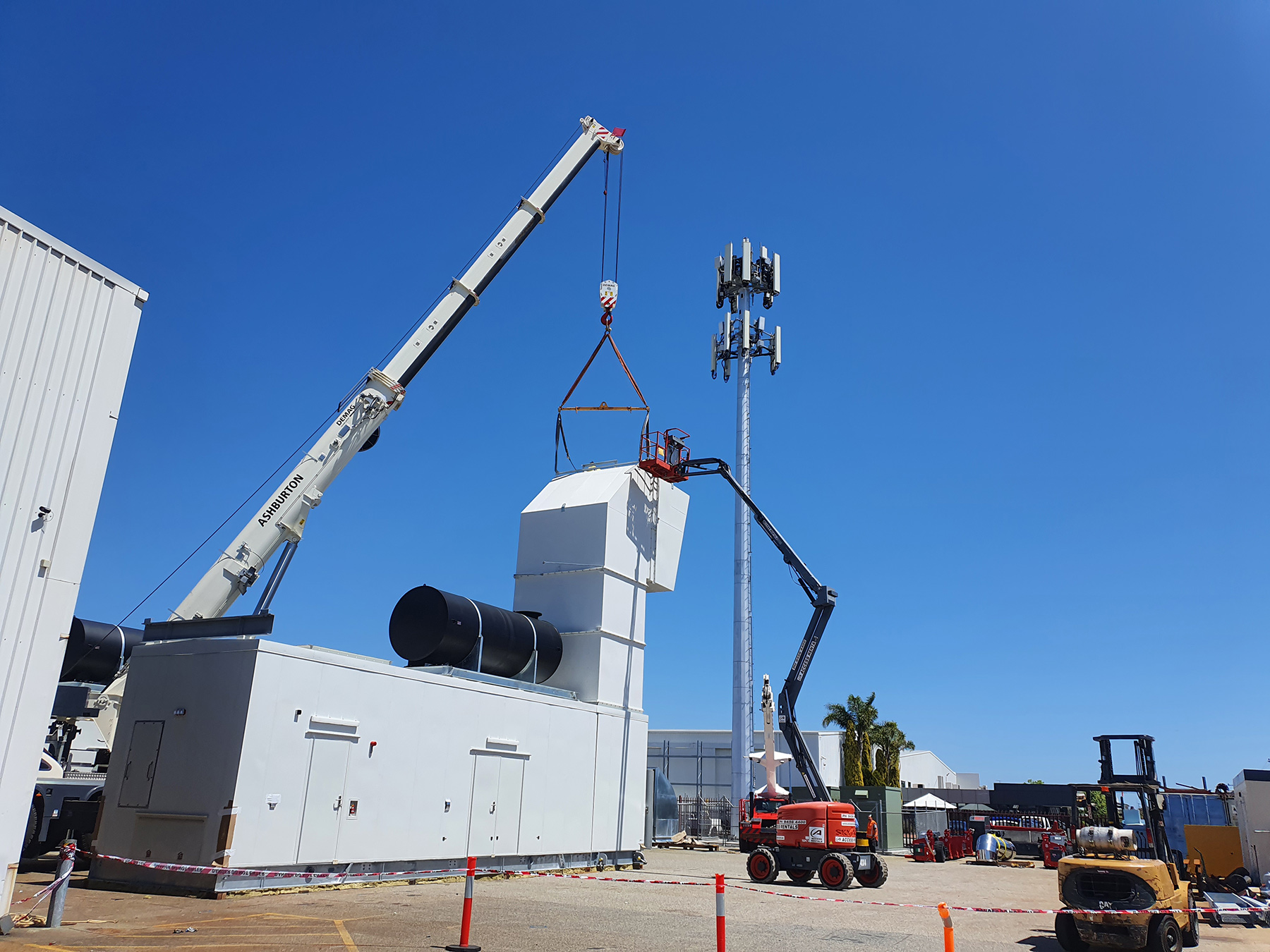

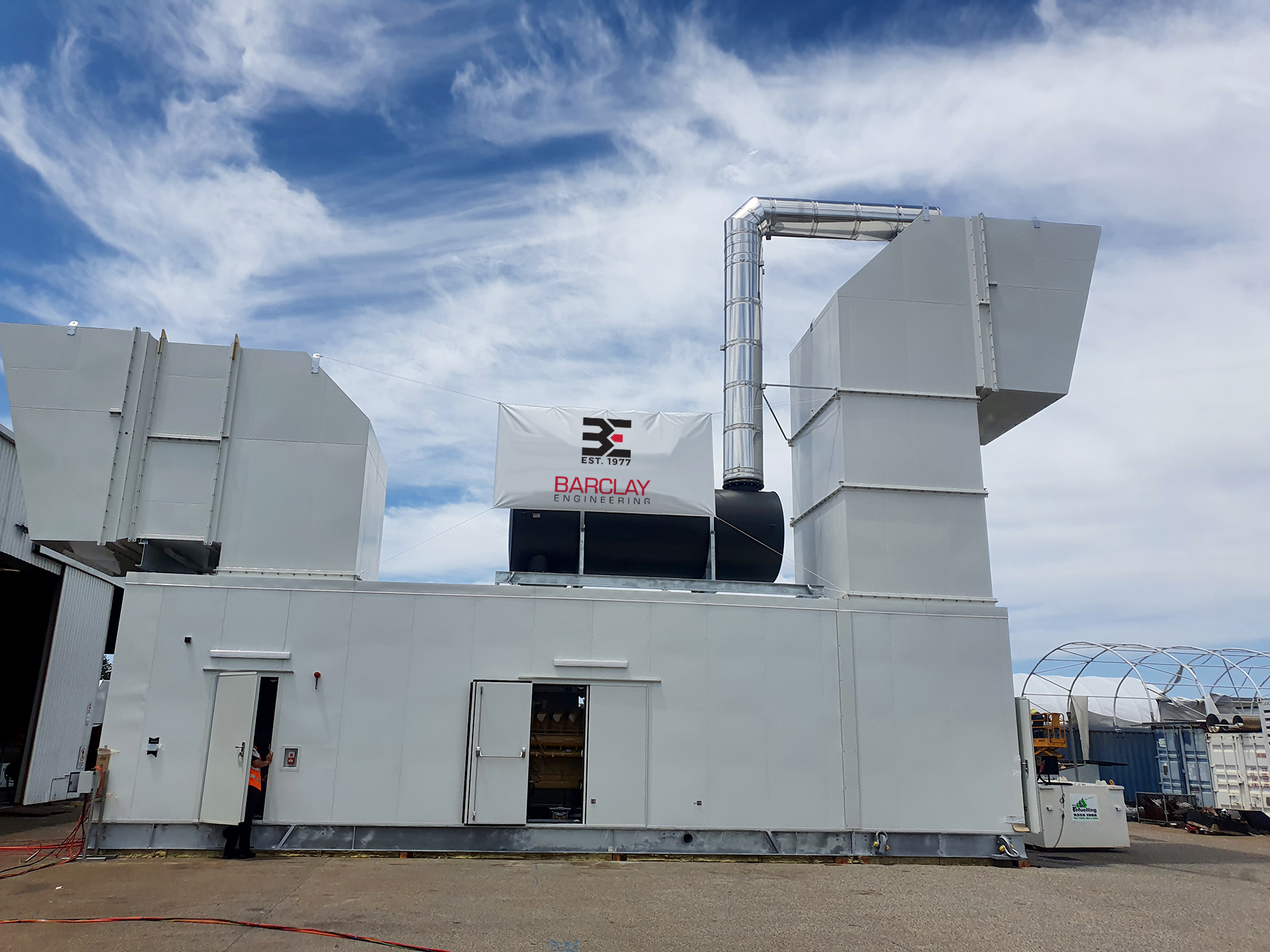

C175-20 Enclosures
- 4 no. acoustic enclosures for CAT C175-20 generators with set mount fan to a 70dBA @ 1m acoustic requirement
- Total enclosure dimensions 15m (L) x 3.5m (W) x 4.3m (H)
- Barclay Engineering intake and discharge ducts, attenuators, moisture eliminators, mufflers
- Dinak exhaust system
- Double skinned 2000L fuel day tank and associated fuel system
- Lighting and Small Power system including Distribution Board
- Emergency stop system.
- Fire Panel and devices.
C18 Enclosure
- 1 no. acoustic enclosures for CAT C18 generators with set mount fan to a 70dBA @ 1m acoustic requirement
- Total enclosure dimensions 8m (L) x 2.8m (W) x 3.5m (H)
- Barclay Engineering intake and discharge ducts, attenuators, muffler
- Dinak exhaust system
- Lighting and Small Power system including Distribution Board

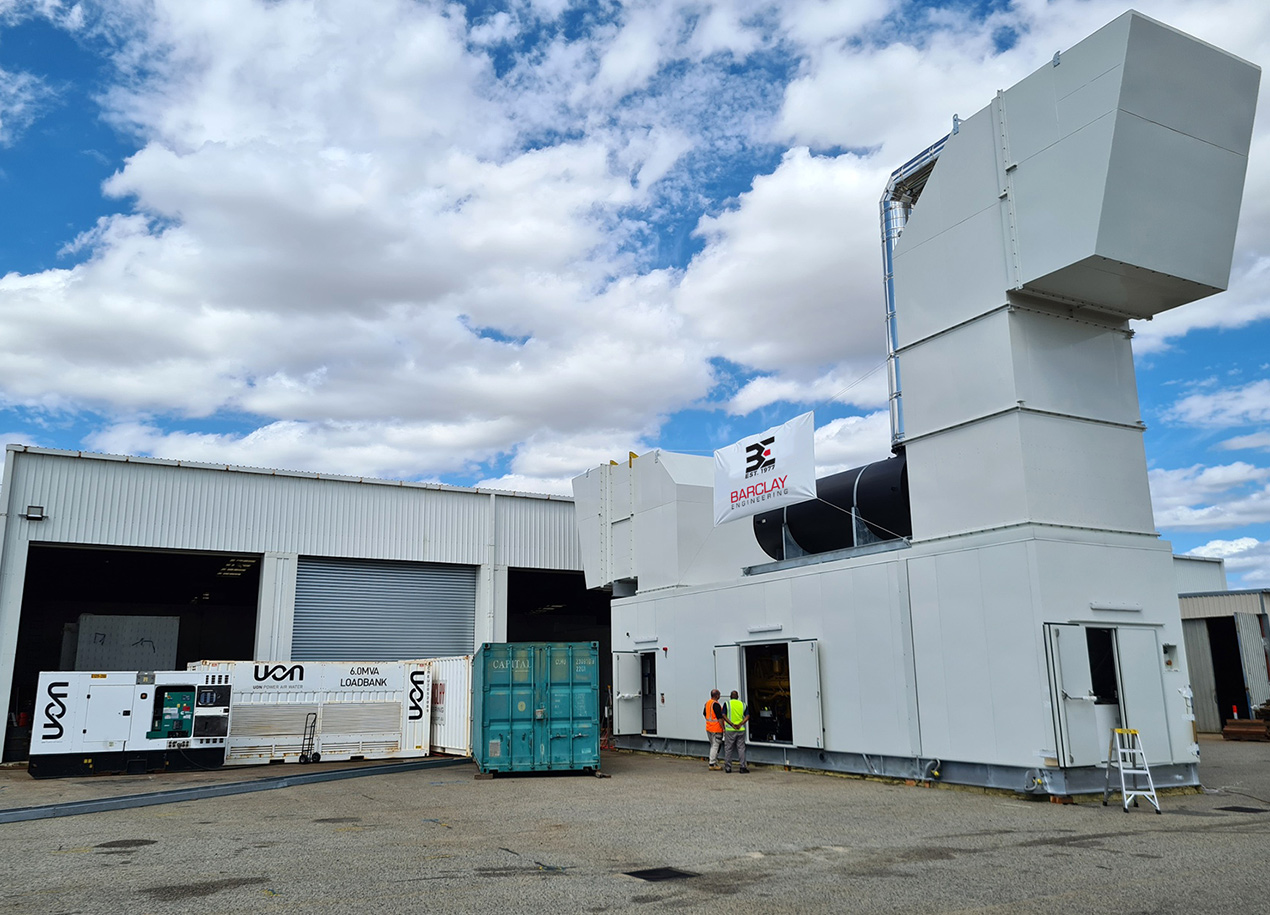

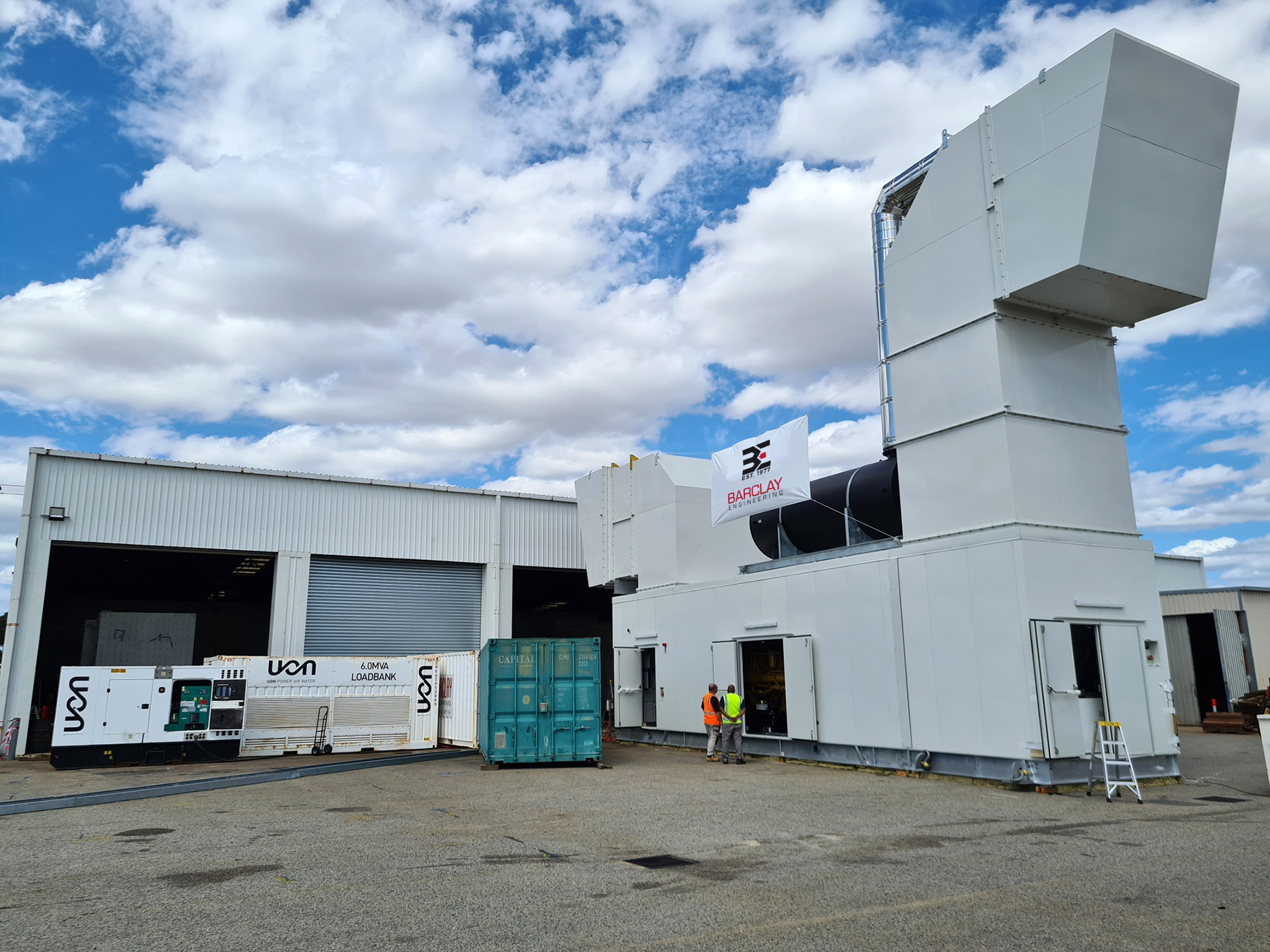

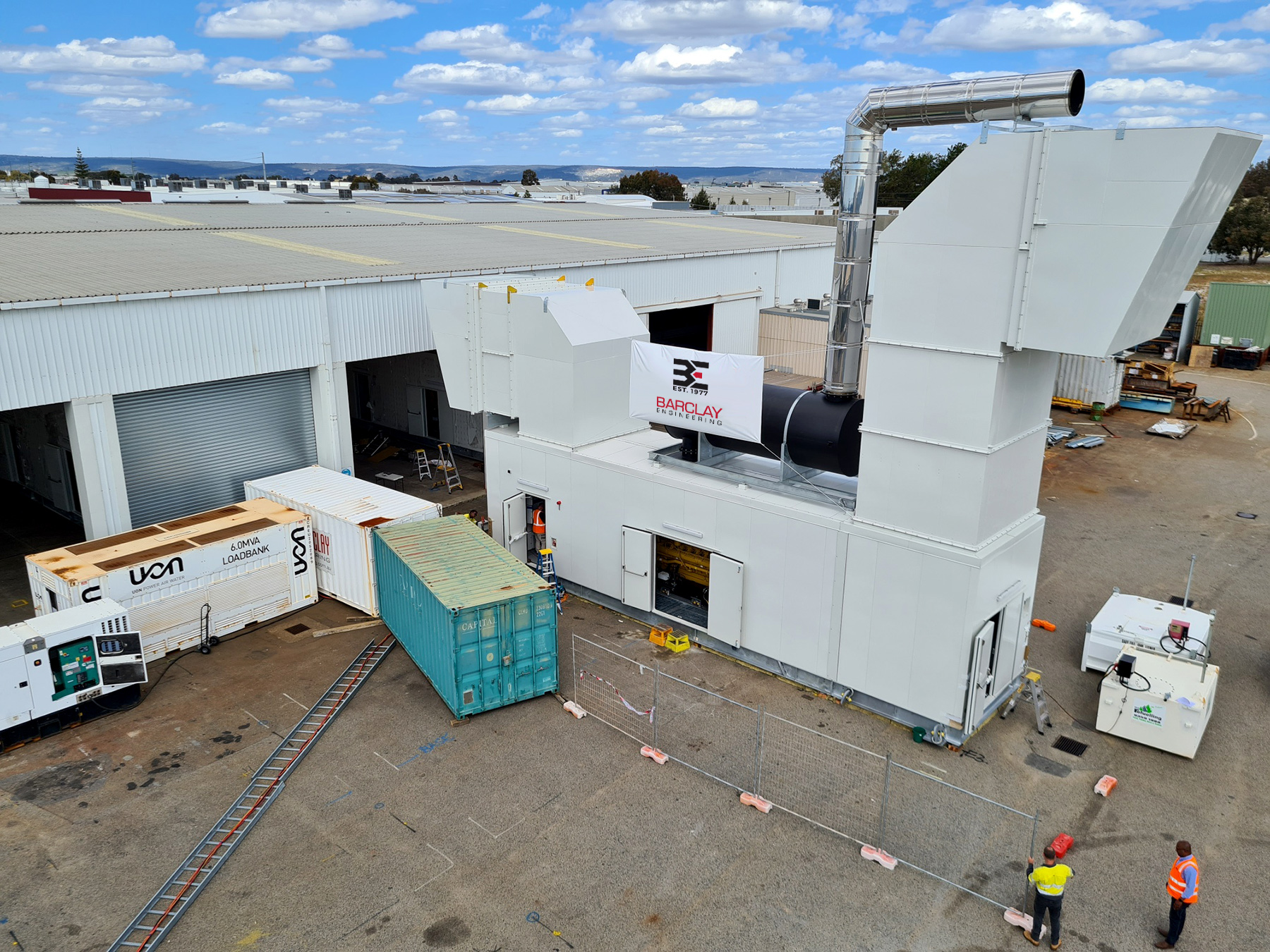

Barclay Engineering also facilitated the Factory Acceptance Testing (FAT) for the CAT C175-20 enclosures for the Client in Barclay Engineering’s Canning Vale Facility prior to transport.
